In Construction, ensuring columns can bear the loads above them is essential for safety. A column’s load‑bearing capacity is the maximum axial load it can support before failure—either by crushing or buckling. This article guides you on how to determine this capacity in a residential building, addressing formulas, design practices, and real‑world insights.
1. What Is Load‑Bearing Capacity in Construction?
Load‑bearing capacity refers to the maximum safe load a structural member—like a column—can support. For residential Construction, columns must safely support dead loads (self‑weight), live loads (occupants, furniture), plus safety factors.
According to Vaia, it ensures “structures support loads without failure or excessive deformation” Vaia.

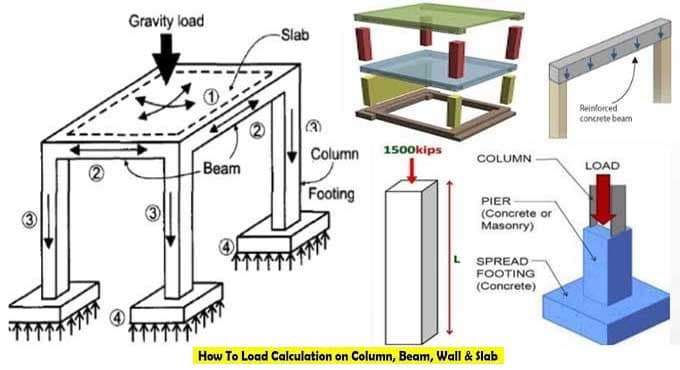

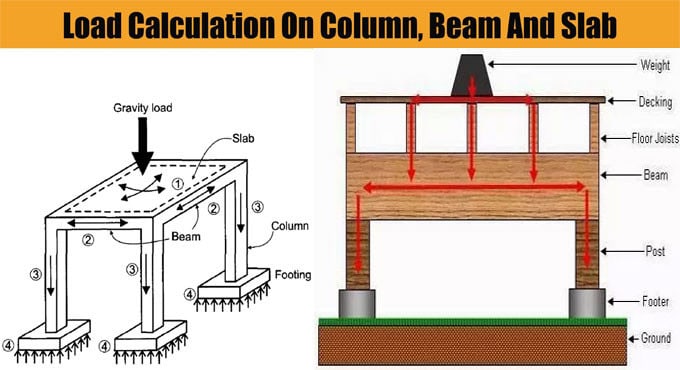

2. Types of Loads on a Column in Construction
2.1 Dead Load (DL): Permanent weights—slabs (~4 kN/m²), finishes (~1 kN/m²), wall loads (≈10 kN).
2.2 Live Load (LL): Temporary weights—people, furniture (~2 kN/m²).
2.3 Self‑Weight: Concrete’s own weight = volume × 25 kN/m³ density
2.4 Factor of Safety (FS): Additional allowance—typically 1.5 for residential
3. Simplified “Thumb‑Rule” Calculation
Use a practical rule:
Load per floor = (slab + live + finish) × tributary area + wall load.
Then multiply by number of floors. Add self‑weight, then apply safety factor:
“Thumb rules help preliminary layout before detailed analysis.”
Example:
- Slab: 4 kN/m², LL: 2 kN/m², finish: 1 kN/m²
- Tributary area: 3×4 = 12 m²
- Wall load: 10 kN
- Floors: 3
- Column size: 300×300 mm, height 3 m
Calculations:
Load/floor = 7×12 + 10 = 94 kN → total = 282 kN
Self‑weight = 0.3×0.3×3×25 = 6.75 kN
Design load = 1.5 × (282 + 6.75) ≈ 433 kN
4. Design Formula for Reinforced Concrete Columns
For short columns, ACI code gives:
Pn=0.85fc′(Ag−Ast)+AstfyP_n = 0.85 f’_c (A_g – A_{st}) + A_{st} f_yPn=0.85fc′(Ag−Ast)+Astfy
- fc′f’_cfc′: concrete compressive strength
- AgA_gAg: gross area
- AstA_{st}Ast: steel area
- fyf_yfy: steel yield strength
Design capacity: ϕPn\phi P_nϕPn, with ϕ\phiϕ = 0.75 (spiral) or 0.65 (tied)
5. Buckling Considerations in Construction
For slender columns, buckling may govern failure before crushing. Use Euler’s critical load:
Pcr=π2EI(KL)2P_{cr} = \frac{\pi^2 E I}{(K L)^2}Pcr=(KL)2π2EI
- EEE: modulus of elasticity
- III: moment of inertia
- LLL: unsupported length
- KKK: end‑condition factor (½‑2)
Residential columns are often short, so use crushing approach unless slenderness ratio demands buckling checks.

6. Design Workflow in Construction
- Calculate loads: DL, LL, finishes, wall loads.
- Compute total axial load with safety factor.
- Select column size (e.g., 300×300 mm) and reinforcement.
- Verify crushing capacity using 0.85fc0.85f_c0.85fc and steel contribution.
- Check slenderness ratio; if > critical, perform buckling design.
- Detail reinforcement: min 0.8–6% steel, 8 mm ties at 150–300 mm
- Review per code (design codes like IS, ACI).
7. Famous Engineering Names & Quotes
- Leonhard Euler (1744): formulated the buckling theory that defines slender‑column behavior
- Braja M. Das (CRC Press): “Meyerhof re‑evaluated N_q … N_c = (N_q − 1)/tan φ” describing foundational soil-bearing formula
8. Stats & Context for Construction
- Avg slab dead load: 4 kN/m²
- Avg live load: 2 kN/m²
- Tributary rule covers ~3–5 m per column
- 300×300 mm RCC columns are common in low-rise residential with 4–6 bars (~16 mm DIA)
9. Key Takeaways ✅
- Load-bearing capacity is D.L. + L.L. + self-weight, multiplied by safety factors.
- Simplified method uses thumb rules early in Construction planning.
- Design formula: Pn=0.85fc(Ag−Ast)+AstfyP_n = 0.85f_c(A_g−A_{st}) + A_{st}f_yPn=0.85fc(Ag−Ast)+Astfy, then apply φ factor.
- Buckling matters if slenderness ratio η = K L/r > critical; use Euler’s formula.
- Minimum reinforcement: 0.8%–6% steel, ties Ø8mm @ 150–300mm.
- Larger columns should be analyzed with design tools or finite‑element methods for accuracy.
10. FAQs
Q1: When should buckling controls be applied?
Use buckling if the slenderness ratio KL/rKL/rKL/r > ~100 (check code values). Otherwise, rely on crushing checks.
Q2: Why apply a Safety Factor (1.5)?
To accommodate material variances, load uncertainties, workmanship, and misuse.
Q3: How much reinforcement is sufficient?
As per thumb‑rule, 0.8–6% steel is typical; for 300×300 mm with four 16 mm bars, area ~804 mm² exceeds minimum ~720 mm²
Q4: What if soil is weak?
Column design must include foundation bearing capacity (Terzaghi’s formula). If poor, deepen or change foundation type.
Links & References
- Civil Practical Knowledge – column capacity step‑by‑step
- Wikipedia – reinforced concrete column formulas
- Wikipedia – Euler buckling formula for columns
- Vaia – load‑bearing capacity explained
Final Thoughts
Determining load‑bearing capacity is a critical step in Construction, ensuring safety and durability in residential buildings. Start with simplified thumb rules, but always verify with design formulas and code requirements. Use modern analysis tools (STAAD, ETABS) whenever possible. Aim for clarity, reliability, and compliance—when your columns are designed right, the rest of the structure stands strong.
