Methods Of Dewatering – Purpose, Precautions & Avantages

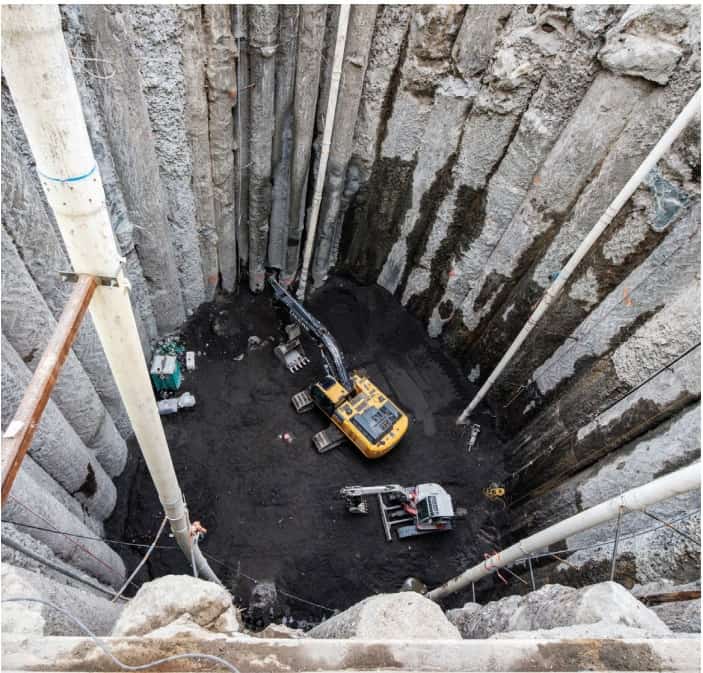

What Is Dewatering?

The process of removing water from an excavation is known as dewatering. In this process, the water is drained outside by pumping from the location.

The main purpose of dewatering is to provide a dry base for the foundation by lowering the ground water table of a given location.

The groundwater, on site, should be controlled to ensure easy and safe accomplishment of the work on the construction site.

So, it is necessary to carry out dewatering before the commencement of construction activities.

Dewatering is an useful method for dealing with running sand, construction as well as repairing of dams, sewers, basement, building, tunnel etc.

dewatering

Methods of Dewatering

There are generally four methods of dewatering which are listed below:

1 Well point method.

2. Eductor wells.

3. Open sump pumping and.

3. Deep Wellpoint method.

Purpose Of Dewatering

Dewatering is required for the following purposes

1. To provide a dry area and permit construction to proceed efficiently.

2. To reduce lateral loads on sheeting and bracing in excavation.

3. To reduce the pressure of air in tunnelling operation.

4. To control the embankment seepage in dams.

5. To improve support characteristics of foundation materials.

Methods Of Dewatering

There are various methods used for controlling the groundwater during an excavation. Choosing the most suitable method of dewatering for a particular site is a critical step.

The presence of unwanted water in a construction site can lead to complications like unsafe work area, increase in construction cost and delay in scheduled work. So, it is important to select the right method of dewatering the undesired water on the construction site.

There are four major methods of dewatering. They are as follows :

  1. Well Point
  2. Educator wells.
  3. Open slump pumping.
  4. Deep WellPoint method

Let us study these methods in detail below

1.  Well Point Method

A Well Point is basically a perforated metal or plastic pipe of 5 cm to 7.5 cm diameter, covered with a screen. Length of the pipe varies from 60 cm to 120 cm.

The lower end of the pipe has a driving head with water holes on it. The pipes, known as riser pipes are inserted into the ground by driving or jetting.

The upper end of the pipes are connected to a pump. The ground water is drawn by the pump through the header pipe and is then discharged.

This method of water removal or dewatering is relatively cheap, flexible and is also effective under most soil and hydrologic conditions.

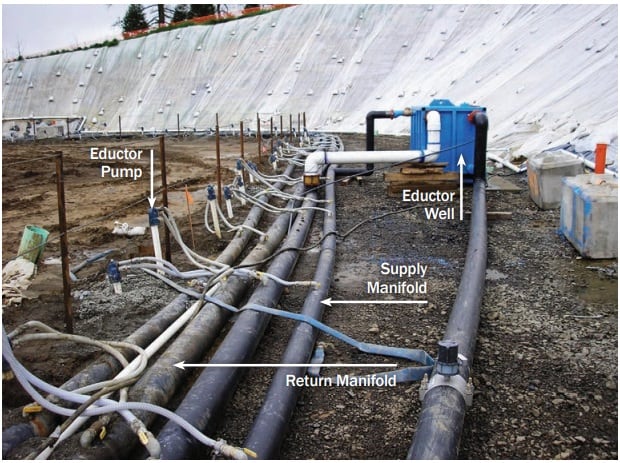

2. Educator Well

This method of dewatering is similar to the well point system. In this method, high pressure water is used to draw water into the well points, instead of vacuum.

A high pressure is given through a Venturi tube creating a reduction in pressure which draws the water through the pipe of large diameter.

The educator well system can operate many well points from a single pump station. Due to this, the water table can be lowered in a single stage from depths of 10 m to 45 m. In soils of lower permeability, this method proves to be an effective option.

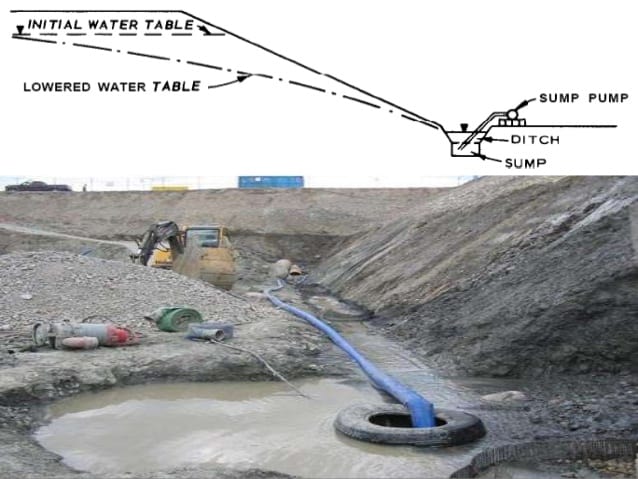

3. Open Slump Pumping

 Open slump pumping is one of the easiest, cheapest and the most effective method of dewatering.

In this method, drains and slumps are constructed at one or more sides or corners of the excavated pit. The groundwater gets collected into the slump through drains.

The collected water is evacuated either manually or mechanically from the slump. If the quantity of water is less, it may also get evaporated on its own after few hours.

But if the quantity of water to be removed is large, the dewatering is done using mechanical equipment such as pumps and is discharged at a proper location.

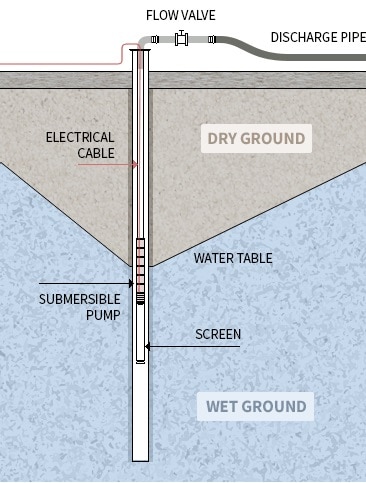

3. Deep Well Point Method

This method applicable when a deep excavation is needed and a large quantity of groundwater is to be removed.

Deep well point method can drain out water upto a depth of 24m. Educators can be considered when well points and deep wells are not suitable options for dewatering.

Precautions For Dewatering

Without proper planning and supervision, dewatering should not be done as it can cause complexities like soil erosion and other such problems at the construction sites. Given below are few tips to consider when choosing a discharge area:

1. Dewatering should be done under special supervision, if any signs of erosion or instability found, stop dewatering instantly..

2. The water should not be pumped directly into slopes.

3. Wooded buffer should be used in dewatering, if possible.

4. Select a proper area for water discharge.

5. If possible, the water from construction site should be discharged and directed to a forest buffer zone.

6. Channels to be used on dewatering must be stable and protected with grass or vegetation.

7. Dewatering should be avoided under heavy rain.

8. Water contaminated with oil, grease, chemical products should not be discharged directly. In such cases, an oil/water separator can be used.

9. Investigations of locals permits and requirements for dewatering is necessary before discharging the water to a particular location from the construction site.

10. Check and understand the water table condition of the dewatering location, because the underground water may be situated near the surface so the plan might not work.
