Methods Of Basement Excavation | Basement Construction Methods


Buildings are supported by ground-based foundations that uphold the structure above them. Even if your house has a crawl space under the floorboards or a basement, laying the foundation can be expensive.

Excavating the earth for a basement foundation entails more than simply digging a large hole in the ground and putting concrete into it. You must use the proper basement excavation method to develop a foundation to sustain your project. In this article, we cover popular methods of basement excavation.

Source: agmaconstruction.com

A basement excavation requires the removal of dirt, rocks, and other material. Basements should ideally be excavated before any component of the building is built, as this will significantly save excavation costs.

Methods Of Basement Excavation

There are five popular excavation techniques for basements, depending on the project’s needs, which are as follows:

Powered By BEdigitech

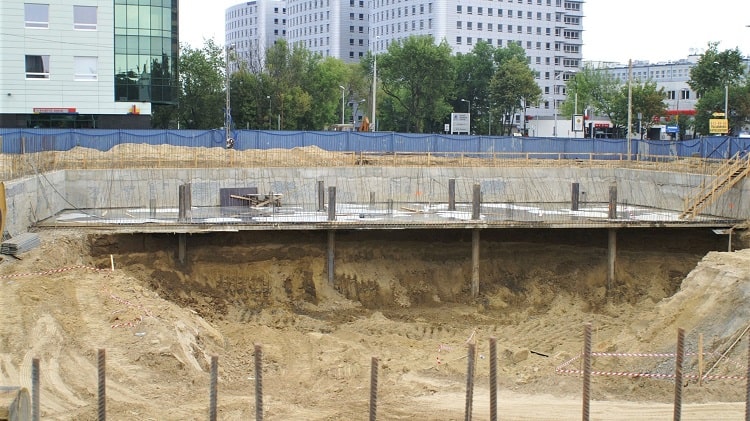

1. Top-Down Method

This method of basement excavation is frequently used to construct high-rise buildings in cities. A sizable basement is dug up beneath that ground floor.

This approach is more agile than open-cut excavation since it enables the construction of a building’s upper levels while a basement is being excavated.

Source: geotech.hr

Construction begins from the top to the bottom of the excavation in this method, and superstructure construction starts once the first slab is done.

As a result, the slabs are built once each stage of excavation is completed. In terms of holding earth pressure, the slabs function similarly to struts.

The building process order includes retaining wall construction, pile construction under superstructure columns, placing columns on piles, and constructing formwork for the first slab at the top, followed by other slabs after each excavation.

The top down construction method would require less construction time, but it would be more expensive compared to other basement excavation methods. Another benefit is that the building area is safer because slabs are stronger than struts.

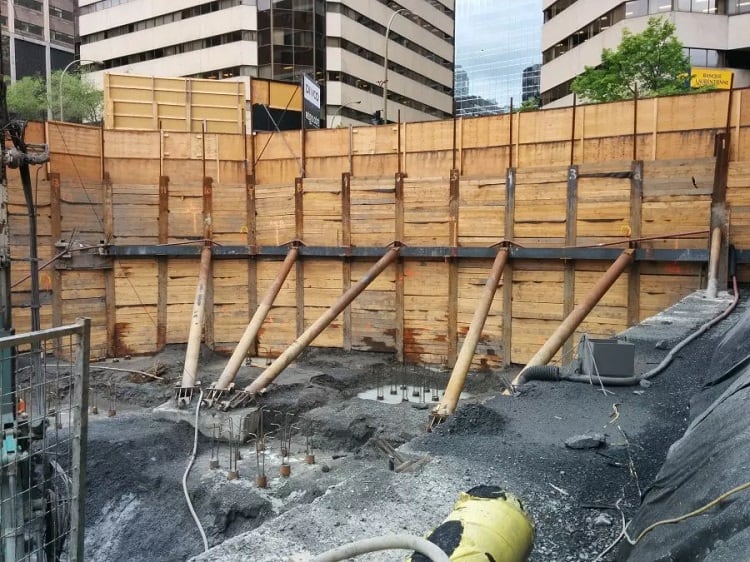

2. Anchored Method

Steel anchors are used in this method of basement excavation to counteract the earth pressure. Steel anchors are drilled into the ground and passed through the retaining wall. If an excavation is anchored to the earth, it will remain stable, and construction can continue securely.

Source: deepexcavation.com

The bonded component of the anchor produces an anchoring force that acts against ground pressure, while the unbonded portion of the anchor transfers pressure to the anchor head. Loads are transferred to the retaining wall via the anchor head.

The anchoring force is heavily dependent on the soil strength. The greater the soil strength, the larger the anchoring forces. The earth’s anchoring force offers stability to the whole structure and allows excavation to proceed quickly and safely.

The anchored approach can only be used if the anchors are driven into bedrock or exceptionally dense clay. Due to the softness of clay and sand, anchors cannot be braced there. This method requires a short time to complete excavation efficiently and is ideal for broad regions with shallow depths.

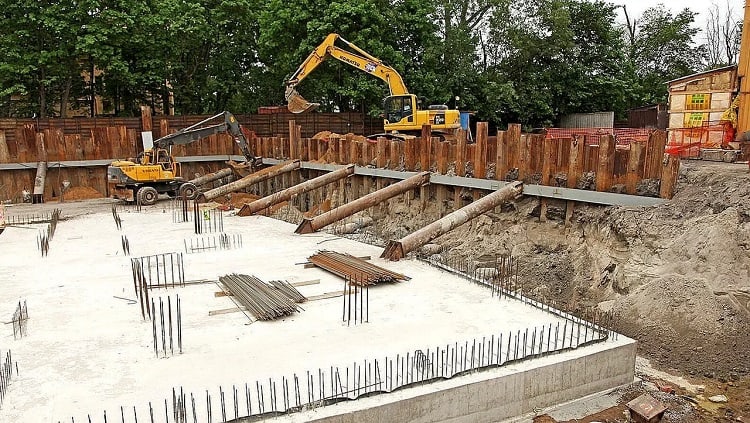

3. Island Method

The island approach is one of the most secure basement foundation methods. This method is used to dig a basement from the inside out. It can be used to safely clean up an area that has been excavated.

The initial step is to start excavation close to the middle of the basement. Excavated materials are then piled up against the retaining walls of the building, creating a slope. Most of your excavated structures will be built in the center of the site.

Struts will be installed between the main structure and the retaining walls, As the slope extends to the outer retaining walls, the center building will eventually be braced to them.

Source: geoizolproject.ru

The island method, which incorporates components of the open-cut slope and bracing methods, results in a wonderfully strong basement and a secure working environment.

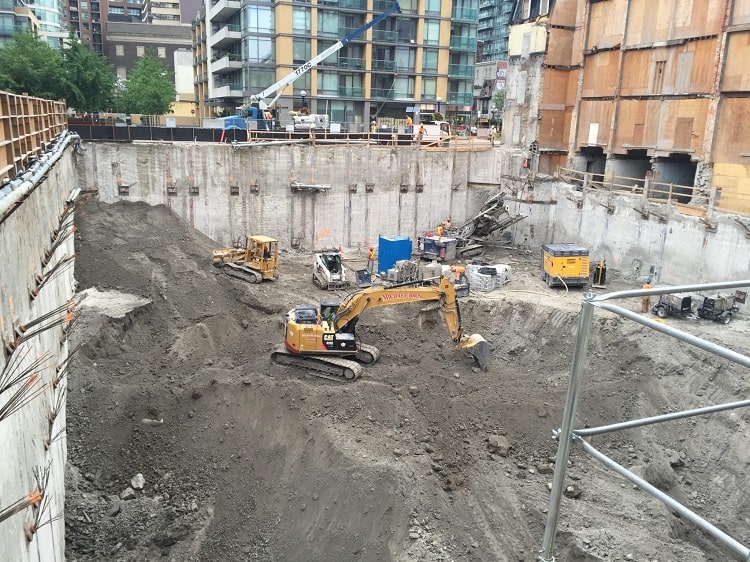

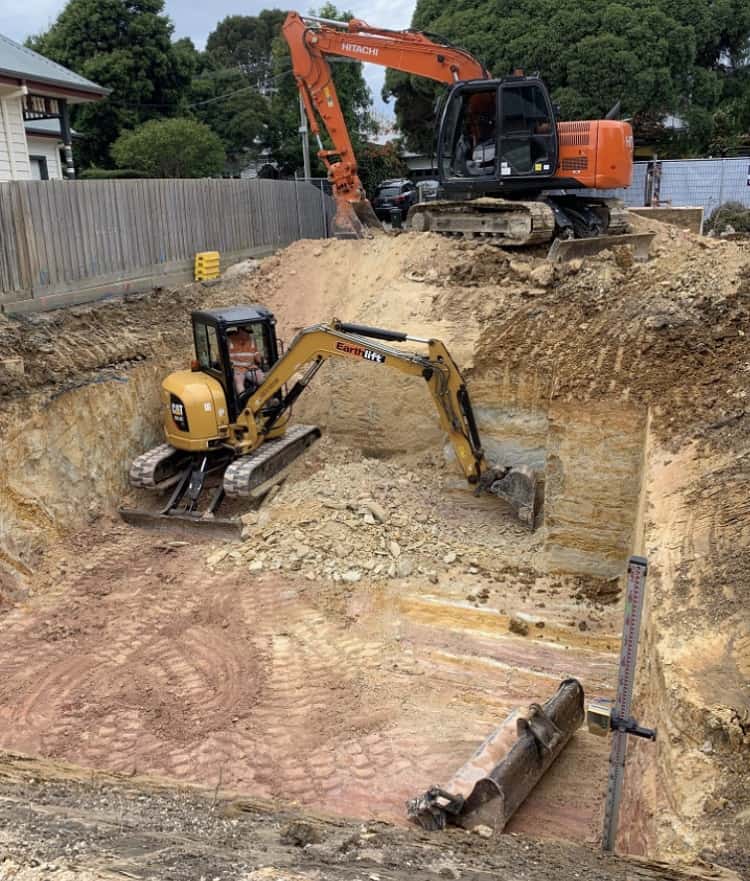

4. Open Cut Method

There are two ways to excavate an open-cut basement, i.e., sloped and cantilever. The slope method is one of the techniques with the least expensive digging charges. It produces an area that has been excavated and has walls that are sloping downhill. Later, extra soil is added on top of this slope.

Source: bazis.ca

Retaining walls is unnecessary when using the open-cut slope technique to prevent the earth from collapsing onto the foundation of your structure. If the slope is relatively mild or the excavation is extensive, the cost of excavation will be high.

The cantilever open-cut method is a more intricate and pricey variation that does require retaining walls to hold foundation wall soil and avoid foundation wall collapse, but it does not require backing or slopes.

As a result, it cannot be stated which method is more cost-effective. The economical approach can be distinguished based on the analysis, design, and evaluation findings. A cantilever approach has the benefit of allowing for much deeper basement excavation.

Source: greenbarexcavation.com

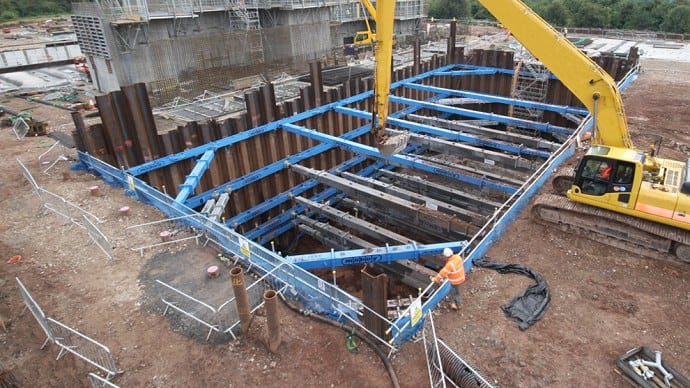

5. Bracing Method

The bracing approach is more expensive than most open-cut excavations but less expensive than the top-down method. In this method, the weight from the retaining wall transmits to horizontal struts erected in front of the wall and runs from one side of the foundation to the other.

These horizontal struts, if appropriately spaced, can act as the framing for a basement in your building. Although horizontal struts are not as strong and foolproof as a whole concrete floor bolted to a foundation, which is what you would build in the top-down method, they do a fair job of decreasing strain on your retaining walls.

The bracing approach appeals to homeowners and builders who cannot afford the top-down method due to its minimal complexity and low cost. The bracing system is made up of wale, strut, center posts, end braces, and corner braces.

azureedge.net

Earth pressure is transferred to horizontal struts via the wale, and the objective of corner and end braces is to reduce the wale span without increasing the strut number. Center posts prevent struts from collapsing due to their weight.

How to Select a Basement Excavation Method for Your Project?

The project owner and the excavating contractor on the site will decide how to excavate a basement. Consider the following factors while deciding on the optimal excavation method for your project.

Construction Type

Constructing a new plot of land is the simplest way to excavate a basement. It will also result in a speedier and more inexpensive excavation. You’ll have fewer options if you excavate a basement beneath an existing structure.

Any excavation job requires the consultation of an excavating contractor and a structural engineer. Building foundations are serious business, and you don’t want to do anything that may jeopardize the structural integrity of your structure.

Soil Type

The quality and density of the soil underlying your structure influence building excavation. If you are building on sandy soil, you will need to dig deep into the earth until you reach bedrock to anchor your project effectively.

This means you’ll need a solution that allows deep excavation, like an open-cut cantilever. If you’re building on dense clay soil, you might not need to go very far down and can instead employ a slope method for excavation.

Topography

If you are building on a hillside, retaining walls will be used further. It may necessitate the anchored excavation approach, in which the soil helps to keep your walls stable as you excavate. A high slope eliminates the possibility of digging a typical basement into the ground.

You have more possibilities when building on flat terrain. You’ll also need to think about the water table—if it’s close to the surface, you won’t be able to travel very far without pumping water.

Size of Building

Tall skyscrapers and office structures are typically excavated from the top down. This allows the builder to work rapidly while ensuring greater early stability than bracing or certain open-cut approaches might provide.

The disadvantage is that top-down excavation is frequently the most costly choice. If your goals are modest, consider the island technique, which gives great consistency for less money.

Conclusion

Excavating your basement is a large project that requires expertise to complete correctly. So, whether you’re building a new home, adding to an existing one, or excavating due to foundation problems, make sure to hire a professional.

The optimal strategy is determined by the circumstances, your budget, and the amount of time available. It’s critical to consult a contractor to know the method they can offer for your specific scenario.

Hope this article has offered a better understanding of the common methods used for basement excavation. Which of these basement excavation methods is right for you? Let us know in the comments.
