What is Concrete Grinder? Its Components & Uses


What Is Concrete Grinder?

A concrete grinder is used to finish work surfaces or floors. Concrete grinders are used to grind and polish floors made of marble, granite, concrete, and other materials.

Concrete grinders are sometimes custom-built to perform specific tasks. Concrete grinders are built to withstand more stress and have more power than those used to grind marble.

Source: diamondtoolstore.com

Because of their versatility, concrete grinders have recently become a popular choice for industries. Concrete grinders remove adhesives and grease-like substances from the floors of commercial sectors or industries in addition to finishing operations.

Concrete grinders have been widely used in developed countries due to their ease of operation and versatility. Grinders remove material through rotary action rather than impact.

Advertisement

The depth of material removal is limited to about 1/8 inch, and they typically leave a smooth profile than scarifying or shot blasting. When working on hard, dense concrete, they may polish the surface rather than rub it.

Types of Concrete Grinder

1. Handheld Concrete Grinder

Most hand-held grinders are used to smooth out rough surfaces before applying concrete or other coatings. They can, however, be used to roughen up surfaces when your walls.

Hand-held grinders are better suited for graffiti or worn mosaics, smooth floors, and defaced parts of a house that have been removed.

Handheld Concrete Grinder

A hand-held grinder can work in vertical structures and fit into small spaces near or before the walls. Hand-held concrete grinders typically range in size from 5 to 9 inches.

It becomes portable and simple to use for removing blemishes from concrete work. Most concrete grinding tools are large and cumbersome, making it difficult to reach some problematic areas.

2. Walk-Behind Concrete Grinders

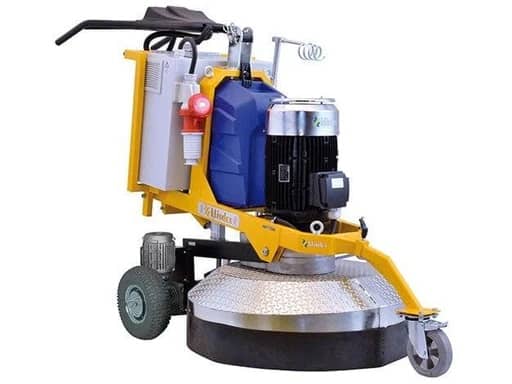

A walk-behind grinder is a large unit that aids in grinding concrete over the body of the floor. These machines can grind larger concrete areas. Several walk-behind concrete grinders are powered by LP, gasoline, or diesel.

Walk-Behind Concrete Grinders

Components of Concrete Grinder

A concrete grinder is mainly a rotating head that aids in smoothing and leveling the surface. The primary components of a concrete grinder are as follows:

i) Diamond

Diamond shapes are available as grits in various sizes and numbers, which aid in work optimization. Synthetic diamonds are of a variety of types, sizes, and styles. Diamond shapes are available as grits in various sizes and numbers, which aid in work optimization.

The size of the diamond and the grit numbers are inversely proportional, which means that a larger diamond is smaller in size and vice versa.

ii) Bonds

Bonds are another essential component of a concrete grinder. If the bond used does not match the material used for grinding, the concrete grinding tool will not function properly.

The bond’s primary function is to completely secure the diamond used for grinding. During the grinding process, the bond wears in a planned manner, exposing the new diamond for grinding without the diamond breaking suddenly.

Uses

1. Even though finer-grit abrasives are used to create a beautifully polished concrete surface, the process that contractors go through to prepare that surface is more than just polishing.

Concrete preparation has three stages: i.e., grinding, honing, and polishing. A polished concrete surface has a clear reflection with a glassy finish, whereas ground concrete surfaces have a flat appearance with low shine.

2. When used in the workplace, concrete grinders are highly adaptable. Concrete grinders are more versatile than other surface prep equipment, and they can perform various tasks, including profiling floors before coating or painting and removing grease and dirt.

The three most common types of attachments in the concrete grinder are:

i) Silicon-carbide stones, smooth trowel marks or rough finishes, and level high spots less than 1/16 inch in diameter.

ii) Tungsten-carbide inserts are useful for removing adhesives, thick paint, tar, resin, rubber deposits, and industrial buildup.

i) Diamond-segmented tools are excellent for profiling and removing thin-film coatings. They are also useful for polishing and removing minor surface imperfections.

3. It is less expensive than many other methods of membrane removal.

4. The surface can be down further to expose the aggregates and polished for a more aesthetically pleasing appearance.

5. A concrete grinder is used to remove stubborn tile glues from the surface.

6. Using a concrete grinder, unevenly cast concrete can be smoothed and shiny.

7. Concrete grinders produce a better surface finish than other stone floor surfaces.

8. It is easier to install flooring after the grinding process has been completed rather than the other way around.

9. It is difficult to remove dirt and debris.

10. Dirt and impurities that accumulate on the surface over time are difficult to remove. On the other hand, the concrete grinder makes it simple to remove them all.

11. With the grinding process, old and worn-out concrete surfaces can look as good as new. Concrete grinding removes all of the imperfections and inconsistencies in the concrete to make it look smooth and ready to use again.

12. This grinding method is long-lasting and dependable. This process is effective even in a challenging environment.
